REMS Curvo

Electric pipe and tube bender

REMS Curvo
Universal, compact electric tool for cold bending of pipes and tubes up to 180°. Can be used anywhere, without vice. For trade and industry. For the building site and the workshop. Hard, half-hard, soft copper tubes, also thin-wall Ø 10–35 mm, Ø 3/8–13/8". Coated soft copper tubes, also thin-wall Ø 10–18 mm. Stainless steel tubes of pressfitting systems Ø 12–28 mm. Coated steel tubes of pressfitting system mapress C-STAHL Ø 12–28 mm. Soft precision steel tubes Ø 10–30 mm. Steel pipes EN 10255 (DIN 2440) Ø 1/4–3/4". Electric conduit DIN EN 50086 Ø 16–32 mm, multi-layer composite tubes Ø 14–40 mm.

REMS Curvo – wrinkle-free bending.
Universal for many pipes and tubes. Instant use without setting. Fast and creep speed operation for precise bending. Quick change of bending and back formers.


Operating instructions

Instruction manual REMS Curvo

Parts list

Parts list REMS Curvo


Products

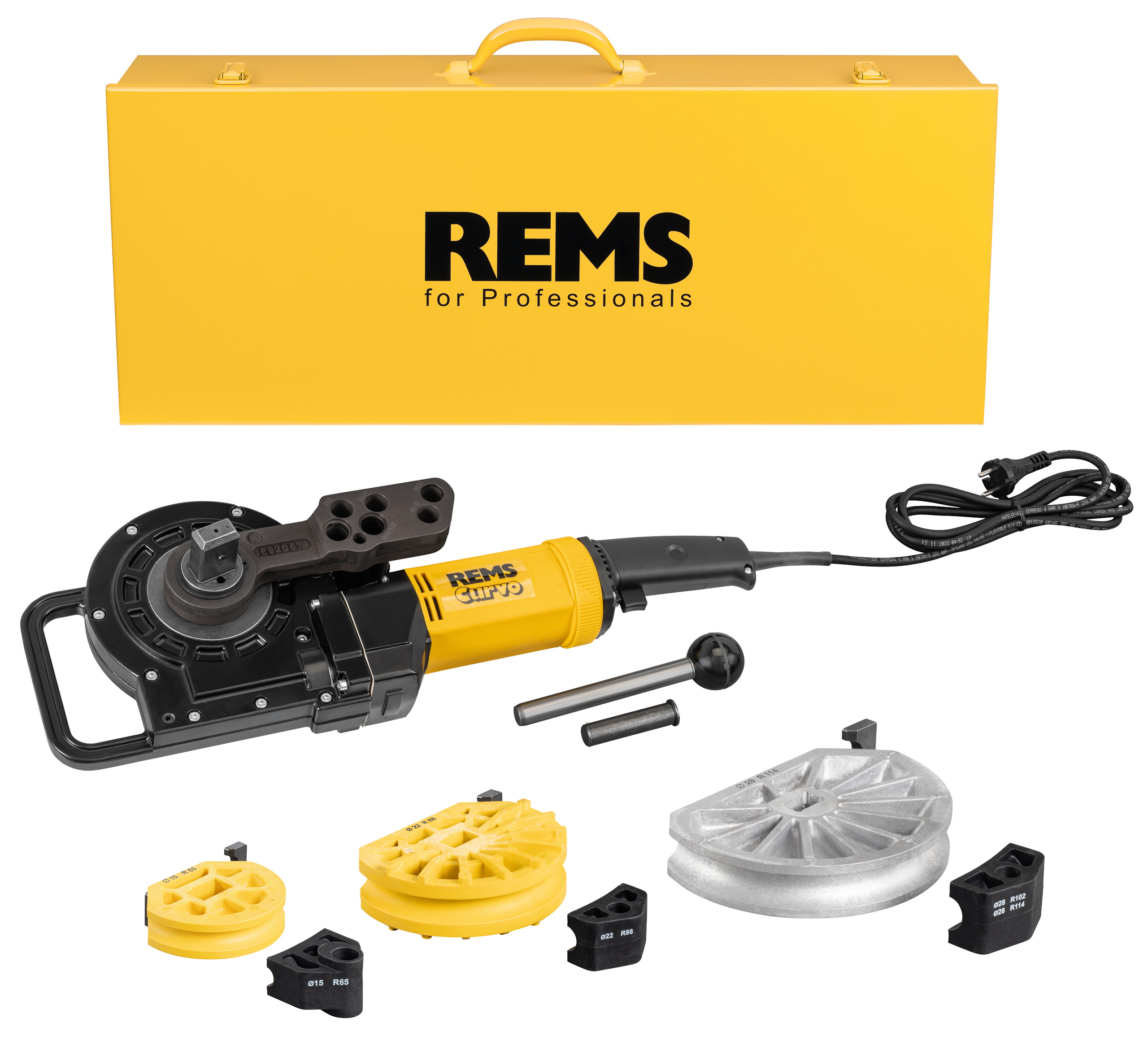

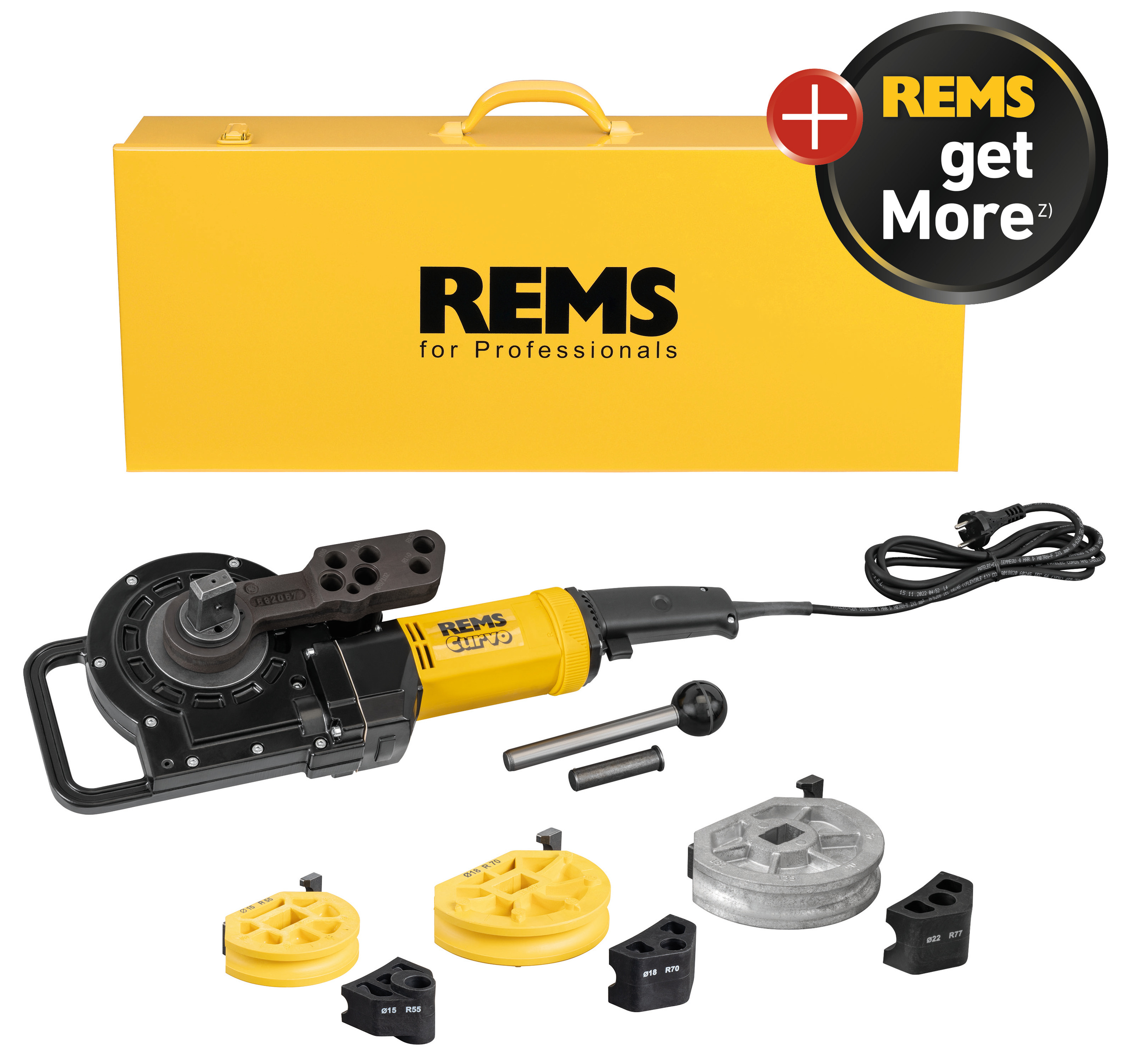

REMS Curvo Set 15+18+22

Art. no. 580026 R110G
 <br/>REMS Curvo
 <br/>REMS Curvo

REMS Curvo Set 12+15+18+22

Art. no. 580020 R110G
 <br/>REMS Curvo

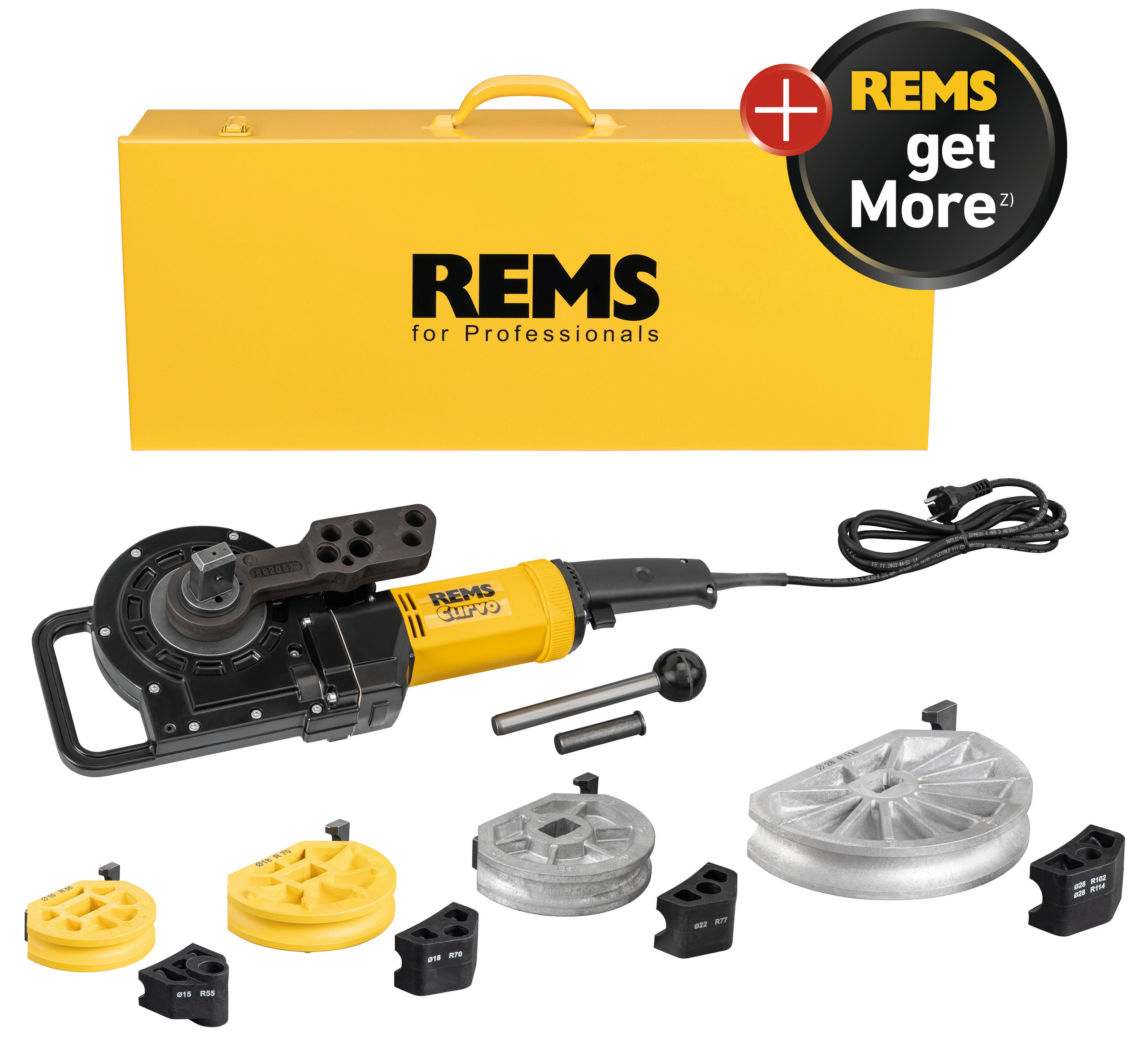

REMS Curvo Set 12+15+18+22+28

Art. no. 580033 R110G
 <br/>REMS Curvo

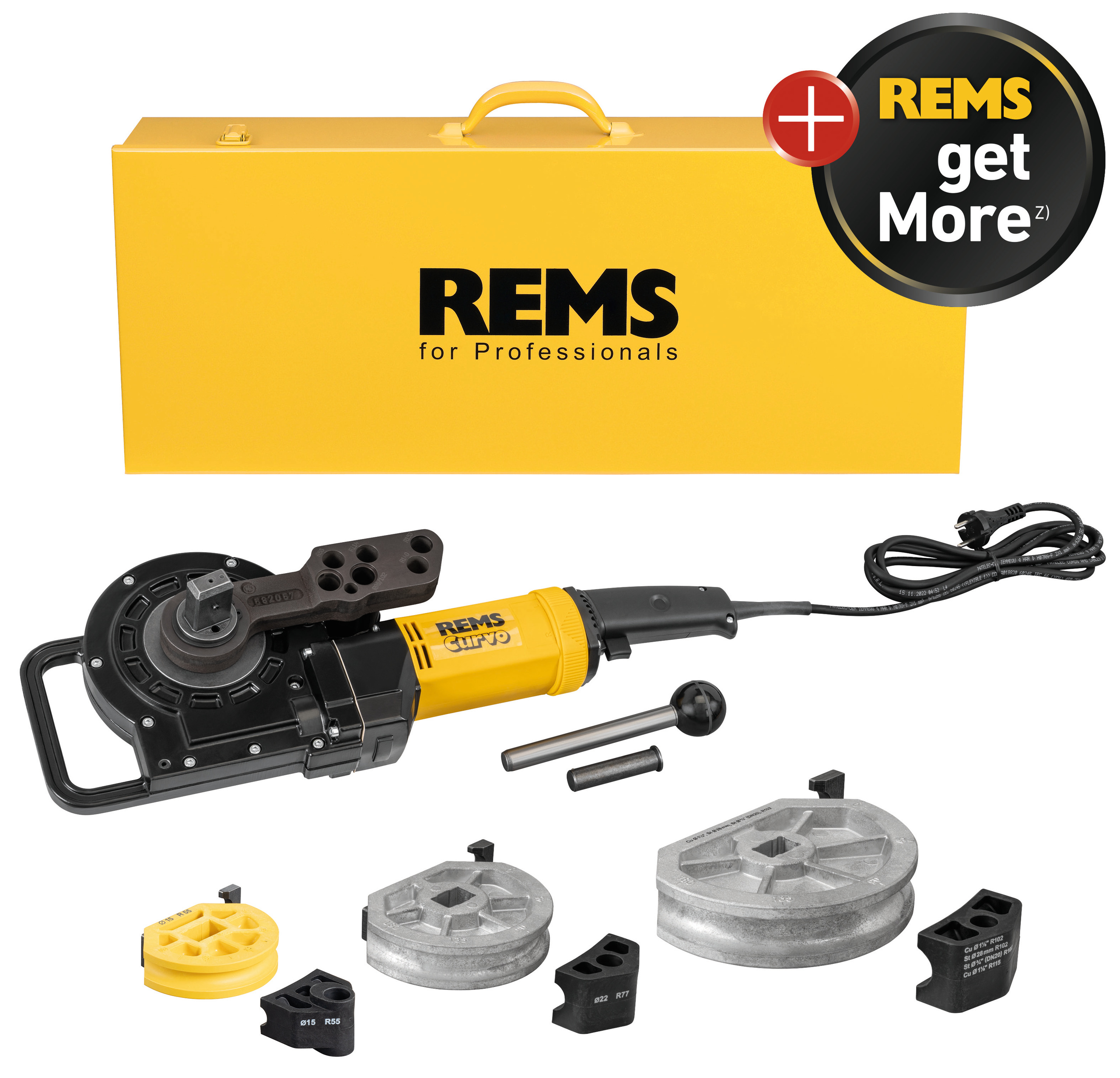

REMS Curvo Set 15+22+28

Art. no. 580022 R110G
 <br/>REMS Curvo

REMS Curvo Set 15+22+28

Art. no. 580040 R110G
 <br/>REMS Curvo

REMS Curvo Set 15+22+28

Art. no. 580040 R220G
 <br/>REMS Curvo
 <br/>REMS Curvo

REMS Curvo Set 17+20+24

Art. no. 580023 R110G
 <br/>REMS Curvo

REMS Curvo Set 12+14+16+18+22

Art. no. 580021 R110G
 <br/>REMS Curvo

REMS Curvo Set 14+16+18+22+28

Art. no. 580028 R110G
 <br/>REMS Curvo
 <br/>REMS Curvo

REMS Curvo Set 16+20+26+32

Art. no. 580025 R110G
 <br/>REMS Curvo

REMS Curvo Set 16+20+25+32

Art. no. 580034 R110G
 <br/>REMS Curvo

REMS Curvo Set 20+25+32

Art. no. 580029 R110G
 <br/>REMS Curvo

REMS Curvo Set 20+25+32

Art. no. 580029 R220G
 <br/>REMS Curvo

REMS Curvo Basic-Pack

Art. no. 580010 R110G
 <br/>REMS Curvo

REMS Curvo Basic-Pack

Art. no. 580010 R220G
 <br/>REMS Curvo


Accessories: Bending formers and back formers

Accessories

REMS Curvo Drive unit

Art. no. 580000 R110G
 <br/>REMS Curvo

Insert bolt mounted

Art. no. 582036
 <br/>Insert bolt mounted

Steel case with inserts

Art. no. 586000 R
 <br/>Steel case with inserts

Machine support 3B

Art. no. 586100 R
 <br/>Machine support 3B

Machine support WB

Art. no. 586150 R
 <br/>Machine support WB

Übersichten zum Zubehör
